Window Cleaning Robot
Smart Window Cleaning Robot
  • Smart Window Cleaning RobotSmart Window Cleaning Robot

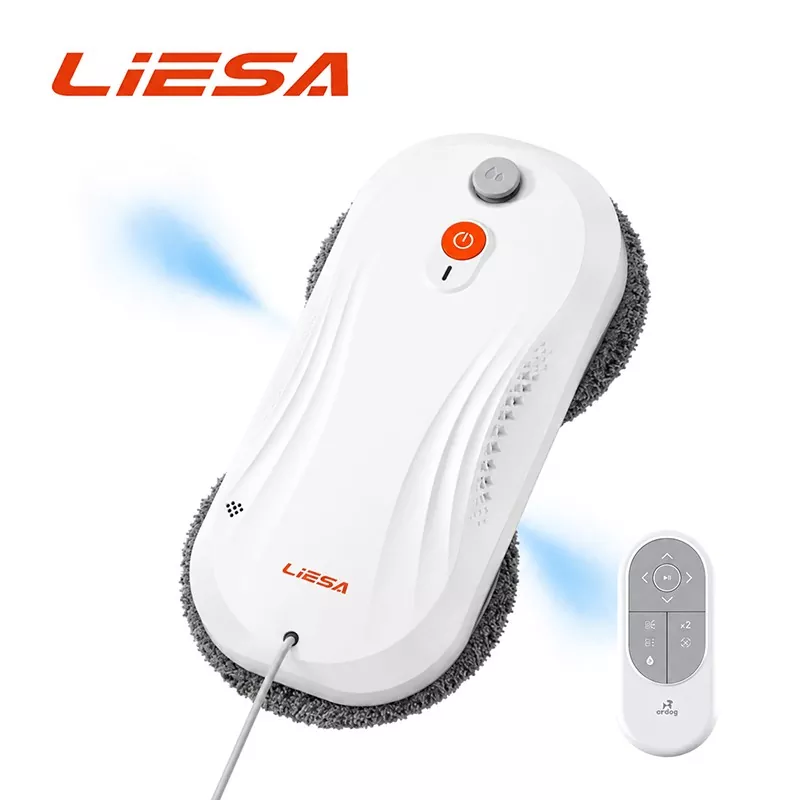

Smart Window Cleaning Robot

Model:309 Pro
LIESA, a China manufacturer and supplier, offers the 309 PRO Smart Window Cleaning Robot with dual-direction atomized spraying, 29,000 RPM brushless suction fan, 2000–3200 Pa variable vacuum pressure and 7 intelligent cleaning modes. Its 60ml water tank covers up to 18㎡, while backup battery support and a 150kg safety rope provide added protection during vertical-surface cleaning.
    Rating: 5.0
    (Rating Count: 1)
    LIESA / SMART WINDOW CLEANING

    The 309 PRO Smart Window Cleaning Robot from LIESA, a China smart cleaning equipment manufacturer and factory, is designed for cleaning smooth vertical surfaces such as glass, tiles, marble and other suitable surfaces. The robot combines an ABS+PC integrated housing, dual-direction atomized spraying, brushless DC suction, edge-detection sensors and multiple cleaning programs in a compact design. With a 24V operating system, AC100-240V power compatibility, a built-in 60ml water tank and backup battery protection, it is designed for both residential and commercial cleaning applications.

    24V Operating System 60ml Built-In Water Tank Dual-Direction Atomized Spraying Backup Battery Protection
    01 / TECHNICAL DATA

    Product Specifications

    Overview

    Model

    309 PRO

    Product Name

    Dual-Sided Spraying Window Cleaning Robot

    Color

    White / Pink

    Appearance (Design Rendering)



    Packing List

    Main Unit (with built-in battery pack) × 1, Power Adapter × 1, AC Power Cord, DC Extension Cord × 1, Cleaning Cloths × 8, Safety Rope × 1, Remote Control × 1, User Manual × 1, Spray Bottle × 1, Battery × 1

    Detailed Specifications

    Package

    Color

    White / Pink

    Main Unit Dimensions (L×W×H) mm

    269*136*78

    Main Unit Material

    ABS+PC

    Main Unit Net Weight (kg)

    1.18

    Overall Gross Weight (incl. 1-in-1 Master Carton, kg)

    2.45

    Color Box Dimensions (L×W×H) mm

    320x86x287mm

    1-in-1 Master Carton Dimensions (L×W×H) mm

    335x96x315mm

    5-in-1 Master Carton Dimensions (L×W×H) mm

    505x350x335mm

    Function

    Operating Mode

    1. Clean Upwards 2. Clean Downwards3. Clean Leftwards 4. Clean Rightwards 5. Spot Cleaning6. X1 Mode Cleaning (Dry/Wet Mopping; adjustable water volume for wet mopping—Small/Large—with Small as default) 7. X2 Mode Cleaning (Dry/Wet Mopping; adjustable water volume for wet mopping—Small/Large—with Small as default)

    Backup Battery Charging Time (h)

    Approx. 2.5 hours

    Backup Battery Runtime (min)

    20–30 minutes

    Operating Noise (dB)

    Approx. 68 dB

    Operating Temperature & Humidity Range (°C / %)

    0–40°C; ≤85% RH

    Operating Speed (min/m²)

    Approx. 4 min 40 sec per square meter; one full water tank covers 18 square meters

    Rated Power (W)

    72 W

    Rated Voltage (V)

    24 V

    Unit Lifespan (h)

    ≥400 Pa

    Suction Motor Speed (rpm)

    29,000 RPM ±10%

    Speed Settings

    Automatic Adjustment

    Vacuum Pressure (Pa)

    2000–3200 RPM (Variable Frequency)

    Manual Update (Firmware)

    Yes

    Low Battery Alarm

    Yes (Buzzer)

    Control Method

    Remote Control (2.4G) — Controllable range: up to 25 meters

    Minimum Working Surface Size (cm)

    30*30

    Water Spray Settings

    2 Levels

    Water Spray Volume (ml/spray)

    Small Setting: Approx. 0.06 ml/s; Large Setting: Approx. 0.09 ml/s

    Water Spray Method

    Atomizing Nozzle (Bi-directional Spray)

    Water Level Detection

    None

    Applicable Surfaces

    Glass, tiles, wooden doors, marble walls, and other smooth vertical surfaces

    Structure

    Solenoid Valve

    Voltage

    24V

    Indicator Light

    Battery Indicator / Meaning of Indicator Light Colors

    Yes

    Water Tank

    Capacity (ml)

    60 ml

    Motor

    Suction Motor Type

    Brushless DC Motor

    Drive Wheel Motor Type

    Brushed DC Motor

    Battery

    Battery Capacity (mAh)

    650

    Battery Type

    Lithium-ion Cells

    Charging Current (mA)

    Approx. 300 (at constant current)

    Accessories

    Adapter

    Output Parameters: Voltage (V), Current (A)

    24V 3A

    Input Parameters: AC (V), Frequency (Hz), Current (A)

    AC 100–240V, 50/60 Hz, 2.5A

    Safety Rope

    Safety Rope Load Capacity (Kgf)

    150

    Safety Rope Length

    5 m

    Cleaning Cloth

    Quantity

    8 Blades

    Other

    Sensor

    Distribution and Category

    1. 6-axis sensor (on the mainboard) 2. Barometric pressure sensor (on the button board)

    Certification

    CE

    YES

    KC

    YES

    02 / PRODUCT ADVANTAGES

    Key Features

    01

    Dual-Direction Atomized Spraying

    The 309 PRO uses a dual-direction atomized spraying system with two adjustable water output levels. Fine mist is distributed during cleaning to help loosen dirt on suitable smooth surfaces such as glass, tiles and marble.

    The two spray settings allow users to select a suitable water output level for different cleaning conditions.

    02

    29,000 RPM Brushless Suction Fan

    A brushless DC suction fan operates at up to 29,000 RPM, with variable vacuum pressure from 2000 to 3200 Pa. The suction system provides the adhesion required for vertical-surface cleaning while maintaining stable contact with the working surface.

    03

    Dual-Sensor Edge Detection

    The robot combines a 6-axis sensor on the mainboard with a barometric sensor on the button board. The two sensing systems work together to identify changes around the cleaning surface and help the robot detect edges during operation.

    This supports more stable movement and helps reduce cleaning-path deviation near surface boundaries.

    04

    Seven Intelligent Cleaning Programs

    The 309 PRO includes 7 preset cleaning programs covering different movement and cleaning patterns, including:

    • Spot wiping
    • Horizontal straight-line cleaning
    • Vertical straight-line cleaning
    • Dry cleaning
    • Wet cleaning
    • Dry-wet combined cleaning
    • Cross-cleaning patterns

    The multiple programs provide more flexible operation for different cleaning tasks.

    05

    60ml Built-In Water Tank

    The integrated 60ml water tank supports cleaning coverage of up to 18㎡ per full fill, reducing the need for frequent manual refilling during a cleaning session.

    06

    Backup Battery for Power Failure Protection

    The backup lithium battery requires approximately 2.5 hours to fully charge and can maintain suction for 20–30 minutes after a power interruption.

    This backup power function helps maintain the robot's attachment to the cleaning surface during an unexpected power failure.

    07

    5m Safety Rope with 150kg Load Capacity

    A 5-meter high-strength safety rope with a 150kg load capacity is supplied with the robot. It provides an additional physical safety measure when the product is used on elevated vertical surfaces.

    08

    Compact Power and Noise Design

    The robot operates at 72W and 24V, with compatibility with AC100-240V input power through the supported power supply system. Operating noise is rated as low as 68dB, making it suitable for regular residential and commercial cleaning environments.

    09

    2.4G Wireless Remote Control

    The supplied 2.4G wireless remote controller supports operation from up to 25 meters away. A low-battery buzzer provides an audible reminder, while manual firmware updating is available for later software maintenance.

    10

    Compact Surface Compatibility

    The 309 PRO can be used on suitable smooth vertical surfaces, with a minimum applicable surface size of 30 × 30cm. Its application range includes residential and commercial surfaces where the robot can maintain stable suction.

    03 / WHERE TO USE

    Application Scenarios

    SCENARIO 01

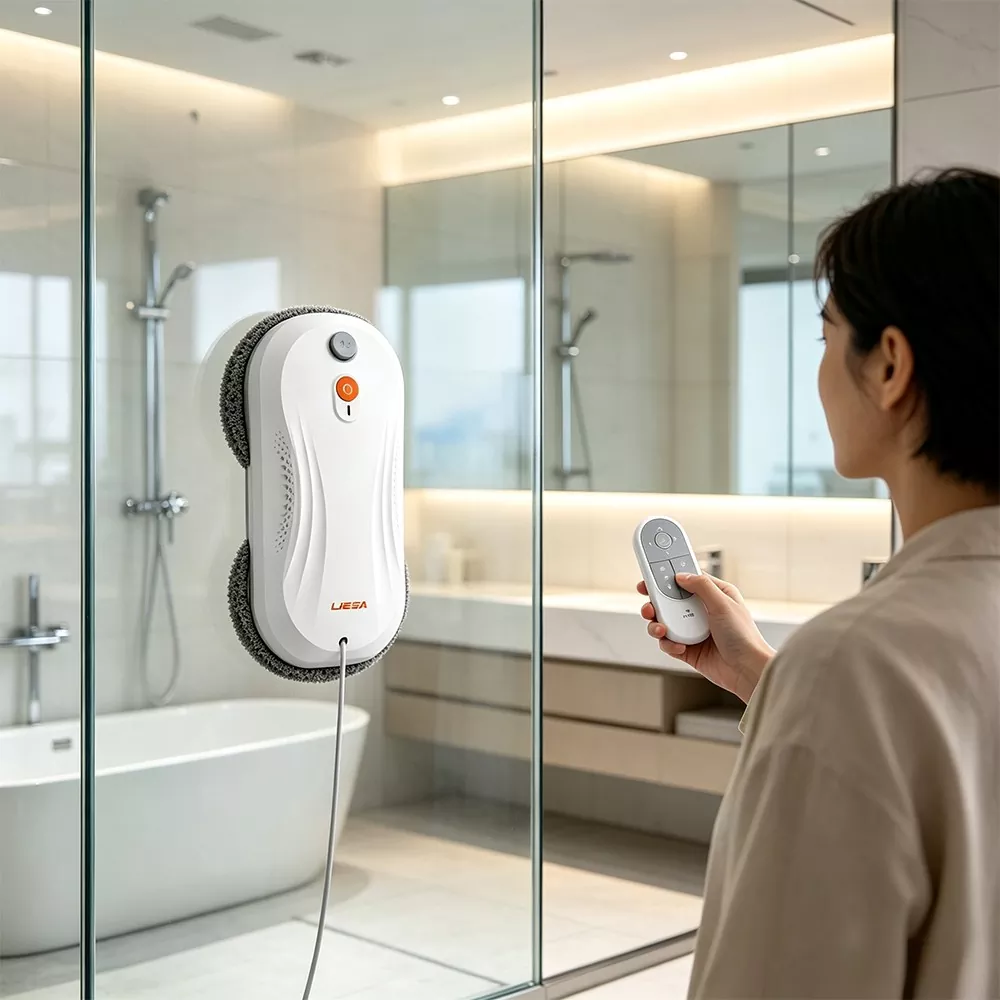

    Residential Windows

    Suitable for cleaning smooth household glass surfaces, including residential windows and large glass panels.

    SCENARIO 02

    Shop and Commercial Glass

    The robot can be used for suitable glass surfaces in retail stores, commercial spaces and other indoor environments.

    SCENARIO 03

    Stone and Marble Surfaces

    Its suction and cleaning system can be applied to suitable smooth stone and marble vertical surfaces.

    SCENARIO 04

    Smooth Doors and Other Vertical Surfaces

    The robot is also suitable for other smooth vertical surfaces, including compatible smooth wooden doors and similar surfaces.

    SCENARIO 05

    Commercial Property and Building Maintenance

    The compact cleaning system can be used as part of routine cleaning tasks for suitable glass and smooth vertical surfaces in commercial properties.

    04 / PRODUCT STRUCTURE

    Technical Construction

    ABS+PC Housing

    The robot uses an ABS+PC composite housing with integrated molding. The current product is available in white and pink.

    Atomized Spray Assembly

    The dual-direction spray structure provides two adjustable water output levels, allowing the water application to be adjusted according to the cleaning task.

    Suction System

    The 29,000 RPM brushless DC suction fan operates within a variable vacuum pressure range of 2000–3200 Pa to maintain adhesion on compatible vertical surfaces.

    Dual Sensor System

    The mainboard includes a 6-axis sensor, while the button board includes a barometric sensor. This dual-sensing structure supports edge detection and movement control during cleaning.

    Power and Backup System

    The robot operates at 24V and 72W, with AC100-240V input compatibility through the applicable power supply configuration. The integrated backup battery provides 20–30 minutes of suction after power interruption.

    05 / OPERATIONAL SAFETY

    Safety and Compliance

    The 309 PRO is designed with multiple safety-related functions for vertical-surface cleaning:

    Backup battery Maintains suction for 20–30 minutes after power interruption.
    Safety rope A 5-meter rope with 150kg load capacity is supplied as standard.
    Dual sensing The 6-axis and barometric sensors assist with edge detection and movement control.

    The product has CE and KC compliance certification according to the supplied product information.

    06 / IN THE BOX

    Standard Accessories

    The standard package includes:

    • 8 cleaning cloths
    • Power accessories
    • Dedicated spray bottle
    • 5m safety rope
    • 2.4G wireless remote controller

    Accessory configuration can be confirmed according to the order specification.

    07 / BRAND CUSTOMISATION

    OEM and Private Label Support

    The 309 PRO is available for private-label and OEM projects serving cross-border e-commerce, offline retail and commercial property channels.

    Available OEM options include:

    Body Color

    White, pink and other agreed configurations.

    Shell Printing

    Customer branding and exterior printing can be arranged according to the project requirements.

    Color Box Design

    Custom retail packaging and branded color box designs are available.

    Multilingual Manuals

    User manuals can be prepared in different languages for overseas markets.

    Gift Set Packaging

    The product can be combined with suitable accessories or cleaning-related items for gift-set packaging projects.

    08 / ORDER FULFILMENT

    Packaging and Shipment

    Two standard packing formats are available:

    1pc Individual Box

    Suitable for individual retail and e-commerce packaging.

    5pcs Master Carton

    Suitable for bulk shipping and warehouse handling.

    Carton configurations can be arranged for 20ft, 40ft and 40HQ containers according to the final packaging specification.

    For larger orders, split-batch shipment and other delivery arrangements can be discussed according to the purchasing plan.

    09 / PURCHASING INFORMATION

    FAQ

    Q1: Can the cleaning cloths be purchased separately?

    Yes. Cleaning cloths can be ordered separately in bulk, allowing distributors and retailers to replenish consumable accessories without purchasing additional robots.

    Q2: Can the spare cleaning cloth packaging be customised?

    Yes. Separate packaging for spare cleaning cloths can be developed with customer branding and product information according to the project requirements.

    Q3: Does the 309 PRO support KC requirements for the Korean market?

    The supplied product information states that the main unit and matching power adapter have passed KC compliance testing. Relevant certification documents can be provided according to the shipment requirements.

    Q4: Can white and pink units be mixed in one master carton?

    Yes. White and pink units can be mixed in the same master carton according to the agreed quantity ratio, subject to the final packing arrangement.

    Q5: Can the color box be customised for gift packaging?

    Yes. Custom colour boxes and gift-set packaging can be arranged for suitable OEM projects. Printing and inner packaging requirements can be confirmed before production.

    Q6: Is firmware updating supported?

    Yes. The 309 PRO supports manual firmware updates, and multilingual illustrated firmware-update instructions can be supplied according to the agreed project requirements.
