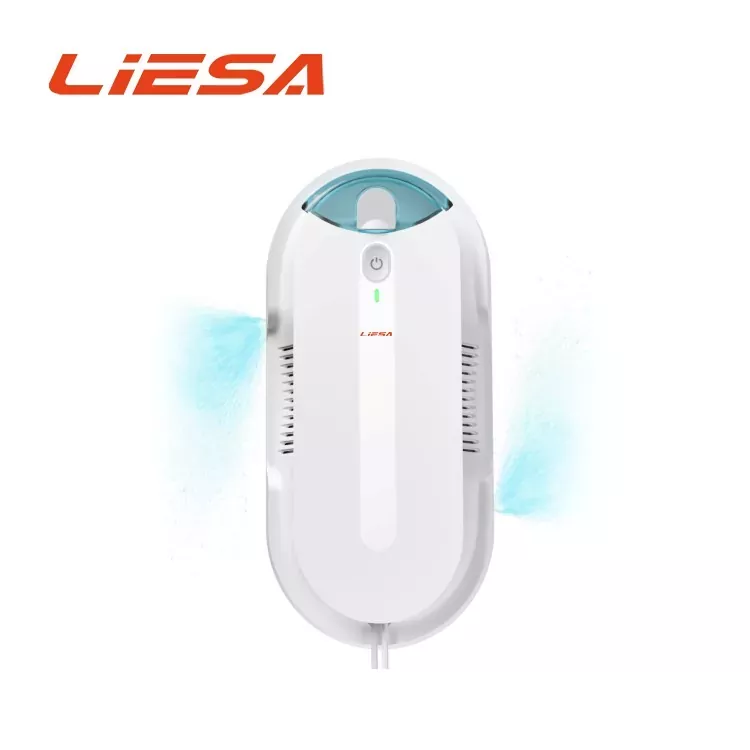

Multi Surface Window Cleaning Robot
Model:309
LIESA manufactures the multi surface window cleaning robot in Qingdao, China, for buyers who need one machine to cover glass, mirrors, smooth tiles and polished panels rather than a dedicated unit per surface. Pad grade and water volume are matched to the surface in use. Liesa Intelligent Technology has built cleaning appliances in Qingdao since 2014, with OEM pad sets and branding.
Smooth, non-porous surfaces beyond windows can also be cleaned with the Multi Surface Window Cleaning Robot, including mirrors, shower screens, glass cabinet doors and polished worktops. The same suction platform maintains contact where an airtight seal can be formed, while the cleaning settings can be adjusted to suit different surface conditions.
LISA, a China supplier of cleaning robots, applies the same platform to multi-surface cleaning with attention to microfiber type, spray volume and surface suitability. Abrasive materials should not be used on surfaces that may be scratched.
Specifications
| Overview | Model | 309 | |
| Product Name | Multi Surface Window Cleaning Robot | ||
| Color | White | ||
| Appearance (Design Rendering) | |||
| Packing List | Main Unit (with built-in battery pack) × 1, Power Adapter × 1, AC Power Cord, DC Extension Cord × 1, Cleaning Cloths × 8, Safety Rope × 1, Remote Control × 1, User Manual × 1, Spray Bottle × 1, Battery × 1 | ||
| Detailed Specifications | |||
| Package | Color | White | |
| Main Unit Dimensions (L×W×H) mm | 288*139*78 | ||
| Main Unit Material | ABS+PC | ||
| Main Unit Net Weight (kg) | 1.18 | ||
| Overall Gross Weight (incl. 1-in-1 Master Carton, kg) | 2.45 | ||
| Color Box Dimensions (L×W×H) mm | 320x86x287mm | ||
| 1-in-1 Master Carton Dimensions (L×W×H) mm | 335x96x315mm | ||
| 5-in-1 Master Carton Dimensions (L×W×H) mm | 505x350x335mm | ||
| Function | Operating Mode | 1. Clean Upwards 2. Clean Downwards3. Clean Leftwards 4. Clean Rightwards 5. Spot Cleaning6. X1 Mode Cleaning (Dry/Wet Mopping; adjustable water volume for wet mopping—Small/Large—with Small as default) 7. X2 Mode Cleaning (Dry/Wet Mopping; adjustable water volume for wet mopping—Small/Large—with Small as default) | |
| Backup Battery Charging Time (h) | Approx. 2.5 hours | ||
| Backup Battery Runtime (min) | 20–30 minutes | ||
| Operating Noise (dB) | Approx. 68 dB | ||
| Operating Temperature & Humidity Range (°C / %) | 0–40°C; ≤85% RH | ||
| Operating Speed (min/m²) | Approx. 4 min 40 sec per square meter; one full water tank covers 18 square meters | ||
| Rated Power (W) | 72 W | ||
| Rated Voltage (V) | 24 V | ||
| Unit Lifespan (h) | ≥400 Pa | ||
| Suction Motor Speed (rpm) | 30500 RPM ±10% | ||
| Speed Settings | Automatic Adjustment | ||
| Vacuum Pressure (Pa) | 29000RPM (Variable Frequency) | ||
| Manual Update (Firmware) | Yes | ||
| Low Battery Alarm | Yes (Buzzer) | ||
| Control Method | Remote Control (2.4G) — Controllable range: up to 25 meters | ||
| Minimum Working Surface Size (cm) | 30*30 | ||
| Water Spray Settings | 2 Levels | ||
| Water Spray Volume (ml/spray) | Small Setting: Approx. 0.06 ml/s; Large Setting: Approx. 0.09 ml/s | ||
| Water Spray Method | Atomizing Nozzle (Bi-directional Spray) | ||
| Water Level Detection | None | ||
| Applicable Surfaces | Glass, tiles, wooden doors, marble walls, and other smooth vertical surfaces | ||
| Structure | Solenoid Valve | Voltage | 24V |
| Indicator Light | Battery Indicator / Meaning of Indicator Light Colors | Yes | |
| Water Tank | Capacity (ml) | 65 ml | |
| Motor | Suction Motor Type | Brushless DC Motor | |
| Drive Wheel Motor Type | Brushed DC Motor | ||
| Battery | Battery Capacity (mAh) | 500 | |
| Battery Type | Lithium-ion Cells | ||
| Charging Current (mA) | Approx. 300 (at constant current) | ||
| Accessories | Adapter | Output Parameters: Voltage (V), Current (A) | 24V 3A |
| Input Parameters: AC (V), Frequency (Hz), Current (A) | AC 100–240V, 50/60 Hz, 2.5A | ||
| Safety Rope | Safety Rope Load Capacity (Kgf) | 150 | |
| Safety Rope Length | 5 m | ||
| Cleaning Cloth | Quantity | 8 Blades | |
| Other | Sensor | Distribution and Category | 1. 6-axis sensor (on the mainboard) 2. Barometric pressure sensor (on the button board) |
| Certification | CE | YES | |
| KC | YES | ||
| 20ft | 2100pcs | ||
| 40ft | 4200pcs | ||
| 40HQ | 5000pcs | ||
Matching Pad and Water to the Surface
Fibre grade follows the dirts and the finish. Fine or nano-fibre for mirrors and coated glass, where fibres and residue show in raking light; standard microfibre for tiles and panels; short pile for wet areas such as a shower screen, where soap film needs more water and faster drying. Spray volume is set with the fibre so the film is even rather than heavy.
Surfaces that cannot be cleaned are stated just as clearly. Textured tile, frosted or filmed glass, rough stone, bare wood and any surface with loose grit are outside the design brief, because the seal cannot be established or the multi surface window cleaning robots cannot maintain contact.
Surface Suitability Compared
|
Surface |
Suitable |
Pad and setting |
|
Window and door glass |
Yes |
Standard microfibre, medium spray |
|
Mirror and glass cabinet |
Yes |
Fine or nano-fibre, light spray |
|
Smooth tile and polished stone |
Yes |
Standard microfibre, medium spray |
|
Shower screen and wet areas |
Yes |
Short pile, heavier spray then dry pass |
|
Textured tile, frosted glass, rough stone |
No |
Seal cannot be established |
The table is also the basis of the accessory set. Three pad grades are usually ordered and labelled by surface so the wrong pad is not used on a mirror.
Cross-Contamination Between Surfaces
A machine that moves between a kitchen splashback and a bathroom mirror carries what it has picked up. Grease from a splashback on a mirror pad leaves a smear that takes two passes to remove, and grit from a tiled floor area scratches glass. Separate pad sets and a rinse between areas are the whole answer, and both are cheap to specify.
Water is part of the same discipline. Filtered water is used for mirrors, while a mild neutral cleaner is added only where the surface is not coated and the buyer confirms it is suitable. That keeps the same machine usable across a house without risking a coated surface.
OEM and Order Notes
The multi surface window cleaning robot is supplied as OEM work on pad grades, pad labelling, body colour, logo, carton artwork, manual language and accessory sets. Surface suitability statements are part of the OEM brief so the buyer's listing matches the machine's real capability. Minimum order quantity, tooling and lead time are confirmed with the quotation.
Contact: Liesa Intelligent Technology (Qingdao) Co., Ltd., Qingdao, China | www.liesagadget.com. Factory address and full contact details are provided with the quotation.
FAQ
Q: Which surfaces can the multi surface window cleaning robot clean?
A: Smooth, non-porous surfaces: window and door glass, mirrors, glass cabinets, smooth tile, polished stone and shower screens. Textured or filmed glass and rough stone are not suitable.
Q: How does one machine suit different surfaces?
A: Through the multi surface window cleaning robot and the spray setting. Fibre grade follows the finish and the dirt, and water volume is matched to the fibre so the film stays even.
Q: Should the same pad be used on a splashback and a mirror?
A: No. Separate pad sets and a rinse between areas stop grease and grit being carried onto a mirror, which is where the carry-over shows most.
Q: Is a cleaner used or just water? A: Water alone is the default.
A mild neutral cleaner is added only where the surface is not coated and its suitability has been confirmed.
Q: Can it clean a shower screen?
A: Yes, with a short-pile pad and a heavier spray followed by a dry pass, because soap film needs more water and faster drying than a mirror.
Q: What is needed to quote?
A: The surfaces to be covered, pad grades, market, quantities, packaging format and branding.
