Intelligent Window Cleaning Robot
Model:309
Model 309 Intelligent Window Cleaning Robot serves various household and commercial procurement scenarios worldwide, with full-process OEM customization available. We can adjust outer packages, user manuals and brand logos according to partners’ personalized demands. The machine is equipped with a full set of standard accessories, and layered packaging plus multiple master carton sizes are provided to fit diverse container shipping standards. Stable loading capacity for full containers supports multiple purchasing channels including cross-border e-commerce, offline physical distributors and engineering bulk procurement. Certified with CE and KC, the product meets electrical appliance access standards of numerous countries and works with universal global voltage. It is widely applied to vertical smooth surfaces in residences, hotels and office buildings. Our factory provides complete shipping documents and follows up production, quality inspection and logistics throughout the order to guarantee smooth delivery of overseas bulk orders.

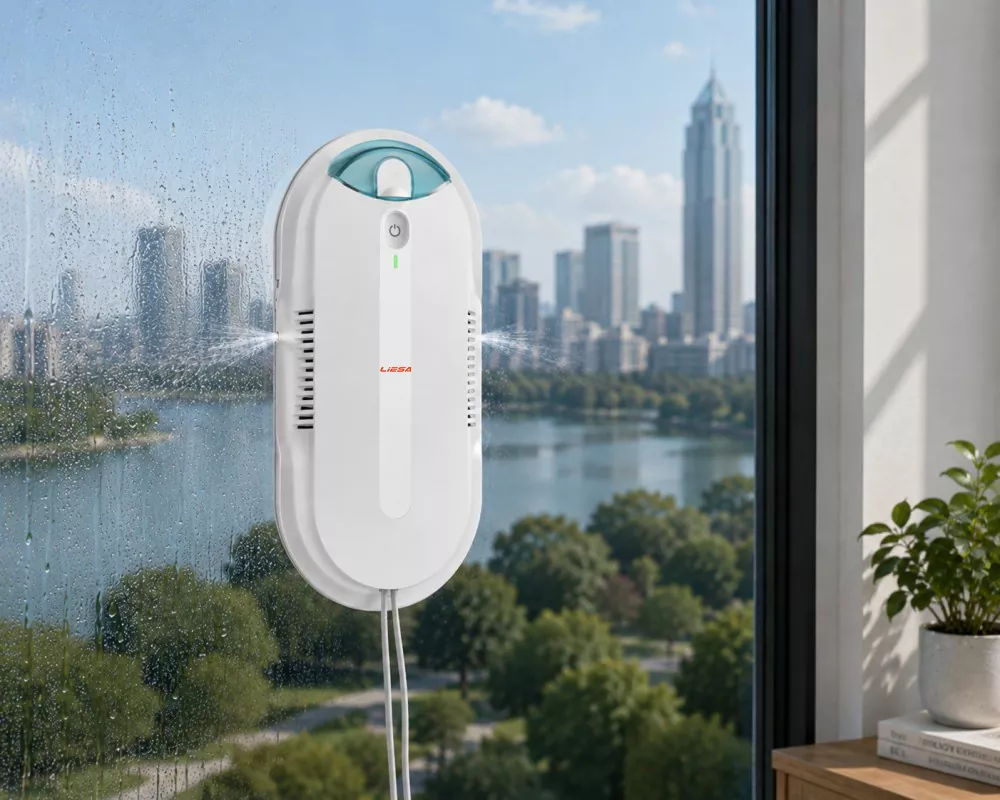

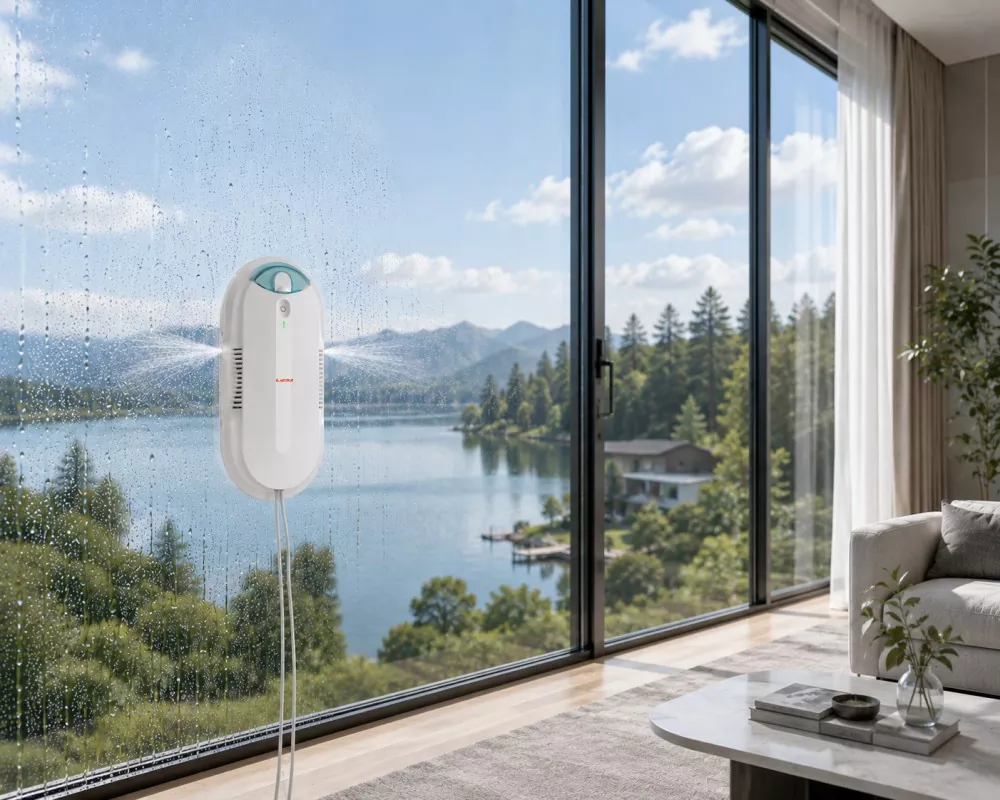

This intelligent window cleaning robot adopts an integrated ABS+PC body with minimalist white design matching various home styles. It is delivered with a full set of accessories including cleaning cloths, safety rope, remote controller and complete power supplies, ready to work right after unpacking.
It is equipped with brushless suction motor and brushed drive motor. The vacuum adsorption system is protected by dual sensors: 6-axis sensor and barometric pressure sensor. The matched 5m safety rope holds up to 150kgf load, and the backup battery keeps suction for 20-30 minutes once power fails to avoid falling risks. Rated power is 72W under 24V, compatible with global AC 100-240V wide voltage. The 65ml dual-side atomizing water tank with two adjustable water flow levels works well on smooth vertical surfaces like glass, tiles, marble and wooden doors.
The 2.4G remote control supports a 25-meter control range, with multi-directional, spot, dry and wet cleaning modes. Operating noise is around 68dB, suitable for long-time quiet cleaning in residences, hotels and office buildings. The service life reaches over 400 hours, certified with CE and KC. Manual firmware update and low battery buzzer alarm are built-in functions. Two carton versions for 1pc and 5pcs fit 20ft, 40ft, 40HQ containers. Full OEM customization service is available to satisfy bulk orders from overseas brands and cross-border merchants.
Overview
| Model | 309 |
| Product Name | Dual-Sided Spraying Window Cleaning Robot |
| Color | White |
| Appearance (Design Rendering) | |
| Packing List | Main Unit (with built-in battery pack) × 1, Power Adapter × 1, AC Power Cord, DC Extension Cord × 1, Cleaning Cloths × 8, Safety Rope × 1, Remote Control × 1, User Manual × 1, Spray Bottle × 1, Battery × 1 |
Detailed Specifications
| Package | Color | White | |
| Main Unit Dimensions (L×W×H) mm | 288*139*78 | ||
| Main Unit Material | ABS+PC | ||
| Main Unit Net Weight (kg) | 1.18 | ||
| Overall Gross Weight (incl. 1-in-1 Master Carton, kg) | 2.45 | ||
| Color Box Dimensions (L×W×H) mm | 320x86x287mm | ||
| 1-in-1 Master Carton Dimensions (L×W×H) mm | 335x96x315mm | ||
| 5-in-1 Master Carton Dimensions (L×W×H) mm | 505x350x335mm | ||
| Function | Operating Mode | 1. Clean Upwards 2. Clean Downwards3. Clean Leftwards 4. Clean Rightwards 5. Spot Cleaning6. X1 Mode Cleaning (Dry/Wet Mopping; adjustable water volume for wet mopping—Small/Large—with Small as default) 7. X2 Mode Cleaning (Dry/Wet Mopping; adjustable water volume for wet mopping—Small/Large—with Small as default) | |
| Backup Battery Charging Time (h) | Approx. 2.5 hours | ||
| Backup Battery Runtime (min) | 20–30 minutes | ||
| Operating Noise (dB) | Approx. 68 dB | ||
| Operating Temperature & Humidity Range (°C / %) | 0–40°C; ≤85% RH | ||
| Operating Speed (min/m²) | Approx. 4 min 40 sec per square meter; one full water tank covers 18 square meters | ||
| Rated Power (W) | 72 W | ||
| Rated Voltage (V) | 24 V | ||
| Unit Lifespan (h) | ≥400 Pa | ||
| Suction Motor Speed (rpm) | 30500 RPM ±10% | ||
| Speed Settings | Automatic Adjustment | ||
| Vacuum Pressure (Pa) | 29000RPM (Variable Frequency) | ||
| Manual Update (Firmware) | Yes | ||
| Low Battery Alarm | Yes (Buzzer) | ||
| Control Method | Remote Control (2.4G) — Controllable range: up to 25 meters | ||
| Minimum Working Surface Size (cm) | 30*30 | ||
| Water Spray Settings | 2 Levels | ||
| Water Spray Volume (ml/spray) | Small Setting: Approx. 0.06 ml/s; Large Setting: Approx. 0.09 ml/s | ||
| Water Spray Method | Atomizing Nozzle (Bi-directional Spray) | ||
| Water Level Detection | None | ||
| Applicable Surfaces | Glass, tiles, wooden doors, marble walls, and other smooth vertical surfaces | ||
| Structure | Solenoid Valve | Voltage | 24V |
| Indicator Light | Battery Indicator / Meaning of Indicator Light Colors | Yes | |
| Water Tank | Capacity (ml) | 65 ml | |
| Motor | Suction Motor Type | Brushless DC Motor | |
| Drive Wheel Motor Type | Brushed DC Motor | ||
| Battery | Battery Capacity (mAh) | 500 | |
| Battery Type | Lithium-ion Cells | ||
| Charging Current (mA) | Approx. 300 (at constant current) | ||
| Accessories | Adapter | Output Parameters: Voltage (V), Current (A) | 24V 3A |
| Input Parameters: AC (V), Frequency (Hz), Current (A) | AC 100–240V, 50/60 Hz, 2.5A | ||
| Safety Rope | Safety Rope Load Capacity (Kgf) | 150 | |
| Safety Rope Length | 5 m | ||
| Cleaning Cloth | Quantity | 8 Blades | |
| Other | Sensor | Distribution and Category | 1. 6-axis sensor (on the mainboard) 2. Barometric pressure sensor (on the button board) |
| Certification | CE | YES | |
| KC | YES | ||
| 20ft | 2100pcs | ||
| 40ft | 4200pcs | ||
| 40HQ | 5000pcs | ||
FAQ
Q1 Will the internal motor get damp and damaged after long-term sea transportation with humid environment?
The whole machine is sealed against moisture before delivery. The internal motor components are equipped with waterproof isolation structure, and the color box is filled with moisture-proof desiccant. It will not be damp easily during ocean shipping, and normal sea transportation period will not affect the motor service life.
Q2 Can we purchase the cleaning cloth consumables in bulk separately?
Cleaning cloths are general supporting consumables. Our factory supports bulk purchase without main units. We can adjust the packaging specifications of consumables according to your order, and provide corresponding quotation list for retailers' restocking demand.
Q3 Does the operating noise of the machine meet the indoor household appliance noise control standards of Europe and America?
The operating noise of the machine is about 68dB, lower than the noise limit of most household cleaning equipment in Europe and America. It will not cause noise disturbance when working in houses or hotel rooms, and can pass the noise test of European and American supermarkets smoothly.
Q4 Can we replace the adapter with separate versions to fit overseas markets with strict voltage regulations?
The main unit adopts universal 24V standard voltage. Our factory can provide separate adapters with plugs for different countries, including EU, UK and US standards. No modification on the main machine is needed to match power supply standards of various regions.
Q5 Can we customize the user manual with multi-language translations?
Multi-language OEM customization of user manuals is available. We can add local official languages according to target markets, together with graphic operation diagrams. Font layout and brand logos can be adjusted as required to help overseas customers understand operation easily.
