Automatic Edge Cleaning Robot

Model:309 Pro

LIESA produces the automatic edge cleaning robot in Qingdao, China, with a dedicated edge programme that follows the boundary of the glass and cleans the strip along the frame or gasket as a defined part of the cycle. The edge pass runs after the main route. Liesa Intelligent Technology has built cleaning appliances in Qingdao since 2014, and supplies the model with OEM branding and packaging.

Send Inquiry

Product Description

Dirt collects at the edge of a window. Water, dust and pollen run down the glass and stop at the boundary, where the frame or gasket holds them, and the strip along that line is where the visible grime sits. A general route crosses it once at an angle; the LIESA factory’s automatic edge cleaning robot runs a defined pass along it.

The pass matters because of how the pad contacts the glass. At the boundary the pad is partly over the frame, so pressure is uneven and a normal route leaves a thin line of film. Following the edge at a set offset lets the pad deal with that strip squarely, which is the difference a buyer notices immediately on a finished pane.

Specifications

Overview		Model	309 PRO
		Product Name	Automatic Edge Cleaning Robot
		Color	White / Pink

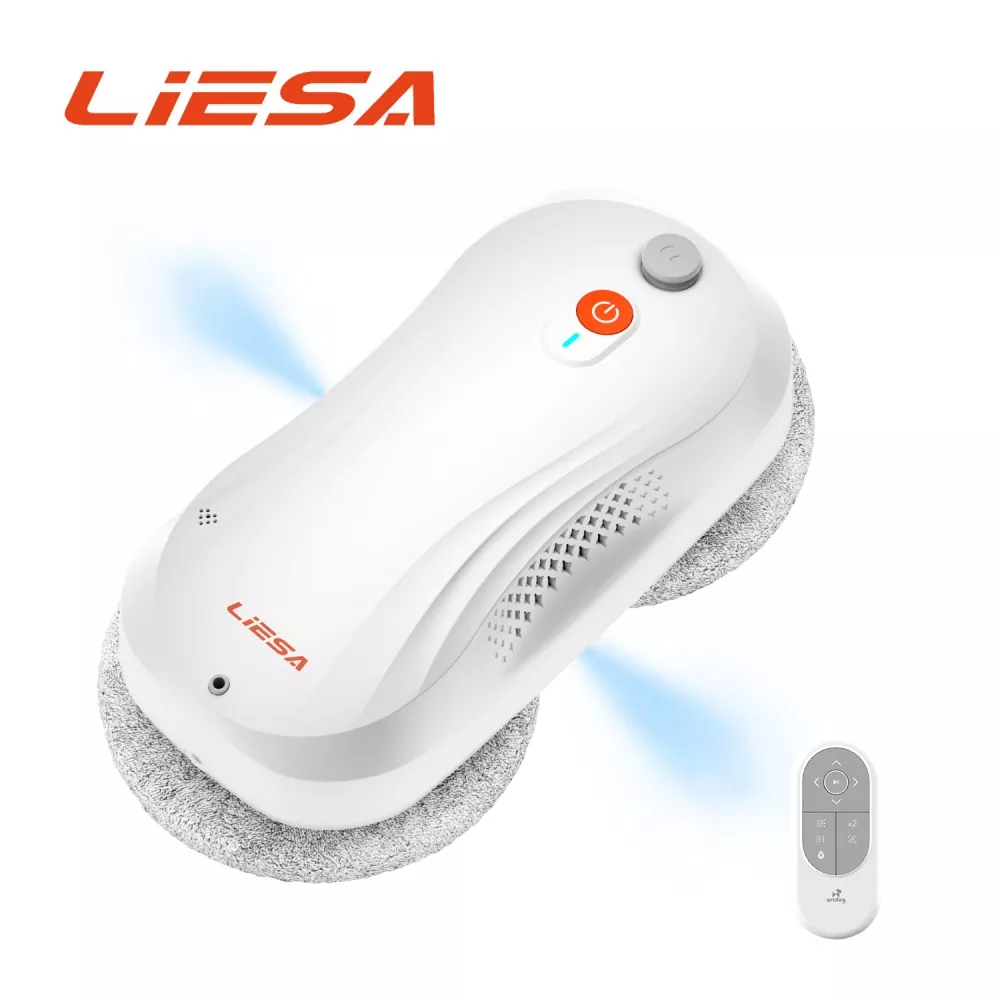

		Appearance (Design Rendering)
		Packing List	Main Unit (with built-in battery pack) × 1, Power Adapter × 1, AC Power Cord, DC Extension Cord × 1, Cleaning Cloths × 8, Safety Rope × 1, Remote Control × 1, User Manual × 1, Spray Bottle × 1, Battery × 1
Detailed Specifications
Package		Color	White / Pink
		Main Unit Dimensions (L×W×H) mm	26913678
		Main Unit Material	ABS+PC
		Main Unit Net Weight (kg)	1.18
		Overall Gross Weight (incl. 1-in-1 Master Carton, kg)	2.45
		Color Box Dimensions (L×W×H) mm	320x86x287mm
		1-in-1 Master Carton Dimensions (L×W×H) mm	335x96x315mm
		5-in-1 Master Carton Dimensions (L×W×H) mm	505x350x335mm
Function		Operating Mode	1. Clean Upwards 2. Clean Downwards3. Clean Leftwards 4. Clean Rightwards 5. Spot Cleaning6. X1 Mode Cleaning (Dry/Wet Mopping; adjustable water volume for wet mopping—Small/Large—with Small as default) 7. X2 Mode Cleaning (Dry/Wet Mopping; adjustable water volume for wet mopping—Small/Large—with Small as default)
		Backup Battery Charging Time (h)	Approx. 2.5 hours
		Backup Battery Runtime (min)	20–30 minutes
		Operating Noise (dB)	Approx. 68 dB
		Operating Temperature & Humidity Range (°C / %)	0–40°C; ≤85% RH
		Operating Speed (min/m²)	Approx. 4 min 40 sec per square meter; one full water tank covers 18 square meters
		Rated Power (W)	72 W
		Rated Voltage (V)	24 V
		Unit Lifespan (h)	≥400 Pa
		Suction Motor Speed (rpm)	29,000 RPM ±10%
		Speed Settings	Automatic Adjustment
		Vacuum Pressure (Pa)	2000–3200 RPM (Variable Frequency)
		Manual Update (Firmware)	Yes
		Low Battery Alarm	Yes (Buzzer)
		Control Method	Remote Control (2.4G) — Controllable range: up to 25 meters
		Minimum Working Surface Size (cm)	30*30
		Water Spray Settings	2 Levels
		Water Spray Volume (ml/spray)	Small Setting: Approx. 0.06 ml/s; Large Setting: Approx. 0.09 ml/s
		Water Spray Method	Atomizing Nozzle (Bi-directional Spray)
		Water Level Detection	None
		Applicable Surfaces	Glass, tiles, wooden doors, marble walls, and other smooth vertical surfaces
Structure	Solenoid Valve	Voltage	24V
	Indicator Light	Battery Indicator / Meaning of Indicator Light Colors	Yes
	Water Tank	Capacity (ml)	60 ml
	Motor	Suction Motor Type	Brushless DC Motor
	Motor	Drive Wheel Motor Type	Brushed DC Motor
	Battery	Battery Capacity (mAh)	650
		Battery Type	Lithium-ion Cells
		Charging Current (mA)	Approx. 300 (at constant current)
Accessories	Adapter	Output Parameters: Voltage (V), Current (A)	24V 3A
	Adapter	Input Parameters: AC (V), Frequency (Hz), Current (A)	AC 100–240V, 50/60 Hz, 2.5A
	Safety Rope	Safety Rope Load Capacity (Kgf)	150
	Safety Rope	Safety Rope Length	5 m
	Cleaning Cloth	Quantity	8 Blades
Other	Sensor	Distribution and Category	1. 6-axis sensor (on the mainboard) 2. Barometric pressure sensor (on the button board)
Certification		CE	YES
Certification		KC	YES

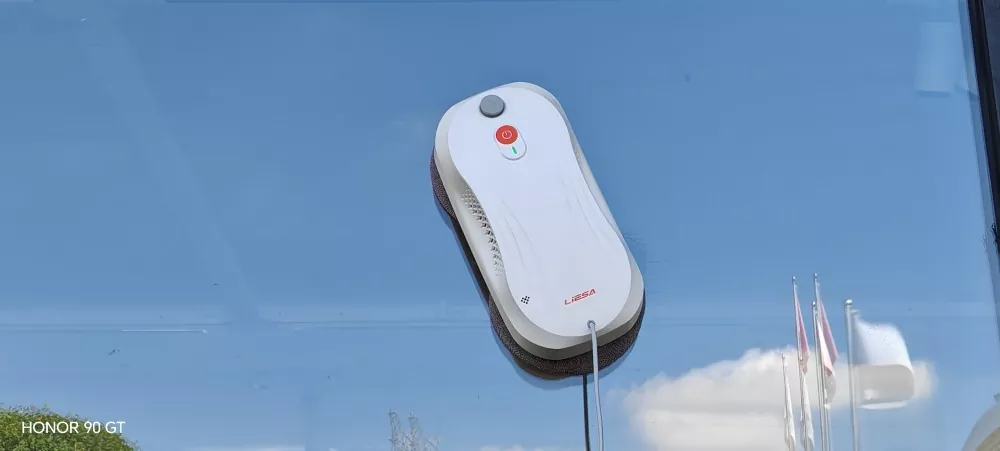

How the Edge Pass Is Run

The edge pass follows the boundary at a fixed offset, turning at each corner and covering the perimeter before stopping. It runs after the main route so the strip is cleaned with a pad that has already been rinsed of the bulk of the dirt, and the offset keeps the pad on the glass rather than on the seal.

Corner behaviour is set with the pass. the automatic edge cleaning robot slows into each corner and turns within the offset, which is what leaves the corner clean without the pad riding onto the frame. On frameless glass the offset is read from the edge of the pane rather than from a frame feature.

Cleaning Programmes Compared

Programme	Coverage	Where it shows
Full route only	Whole pane except the boundary strip	A line of film along the frame
Full route with spot mode	Whole pane plus marked areas	Stubborn patches still by hand
Full route with edge pass	Whole pane plus the perimeter	Clean boundary and corners
Edge pass with frame detection	As above, held off the seal	Clean boundary, gasket untouched

The last row is the configuration used where gasket staining or boundary marks have been a problem.

Edge Dirt, Gaskets and Pad Contact

Two problems meet at the boundary. The strip of glass next to the frame holds the most dirt, and the frame or gasket must not be soaked or compressed. An edge pass with a set offset solves both: the dirt is wiped squarely, and the pad stays clear of the rubber so water is not pushed into the seal.

Pad condition shows at the edge before it shows in the middle of a pane, because the contact pressure is highest there. When a buyer reports a line of film along the frame, the answer is usually a pad that has lost its pile rather than a fault in the programme, and a pad change restores the result.

OEM and Order Notes

The automatic edge cleaning robot is supplied as OEM work on programme sequence, edge offset, body colour, logo, carton artwork, manual language and accessory sets. The edge programme is demonstrated on a sample pane with the buyer's frame profile where one is supplied. Minimum order quantity, tooling and lead time are confirmed with the quotation.

Contact: Liesa Intelligent Technology (Qingdao) Co., Ltd., Qingdao, China | www.liesagadget.com. Factory address and full contact details are provided with the quotation.

FAQ

Q: What does the edge programme add on the automatic edge cleaning robot?

A: A defined pass along the boundary of the glass, run after the main route, which cleans the strip where dirt collects next to the frame instead of leaving a line of film.

Q: Does the edge pass touch the gasket?

A: It follows a set offset from the boundary, so the pad cleans the glass beside the seal without pressing on the rubber or pushing water into it.

Q: How are corners handled?

A: the automatic edge cleaning robot slows into each corner and turns within the offset, which cleans the corner without the pad riding onto the frame.
